Applicable scope: General-purpose places that need energy conservation and continuous operation, such as fans, pumps, etc.
Product Overview

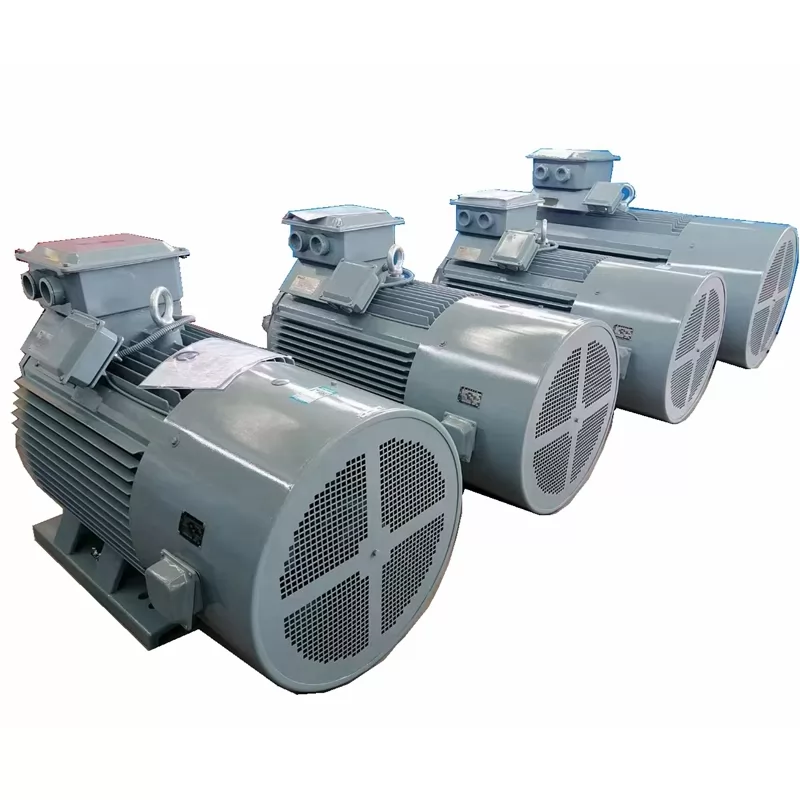

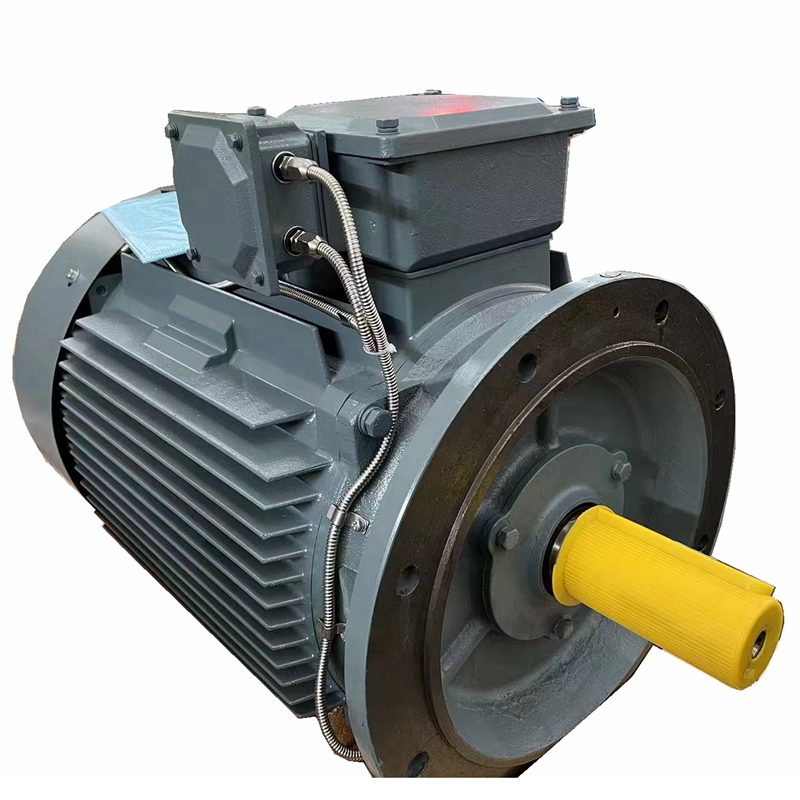

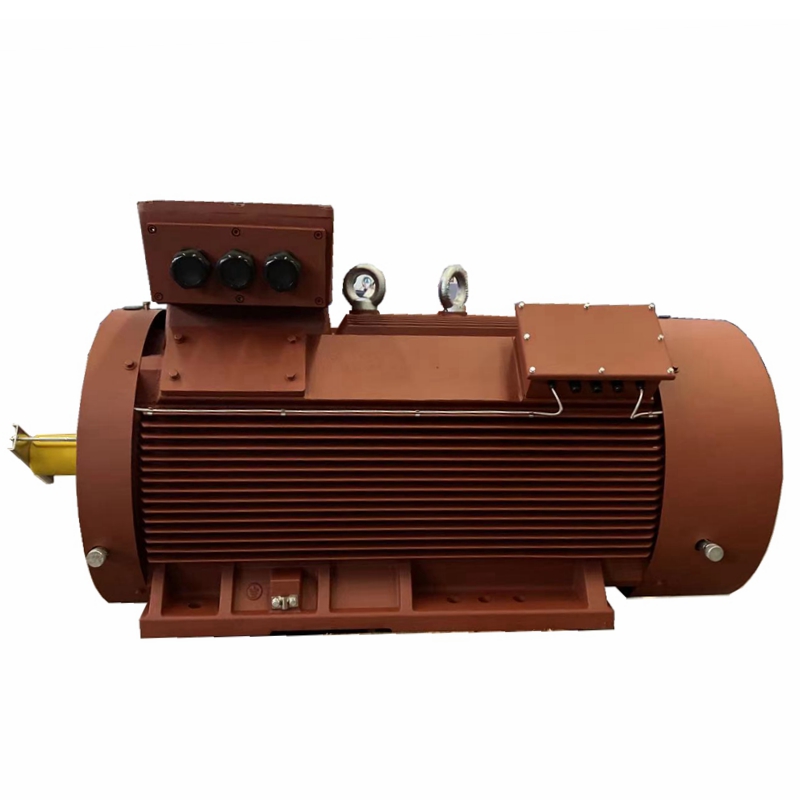

YE4 Series Three-Phase Asynchronous Motors are high-efficiency three-phase asynchronous motors, which are manufactured in accordance with the national GB18613-2020 "Functional efficiency limits and energy efficiency levels of small and medium-sized three-phase asynchronous motors" and the relevant industry standards. The efficiency standards of YE4 series motors meet the national requirements of energy efficiency level 2 and are consistent with IE4 of IEC60034-30, and meet the national requirements of evaluating values of energy conservation for motors.
Technical Parameters
| Frame size | 80 ~ 355mm |
| Power | 0.75-315KW |
| Number of poles | 2P, 4P, 6P, 8P |
| Energy efficiency level | YE2 |
| Duty type | S1 |
| Rated voltage | 380V |
| Rated frequency | 50Hz/60Hz |
| Protection level | IP55(IEC34-5). |
| Cooling method | IC411(IEC34-6) |
| Features | Beautiful appearance, high efficiency and energy saving, Class F insulation, protection level IP55, low noise, low vibration and reliable and stable operation. |
